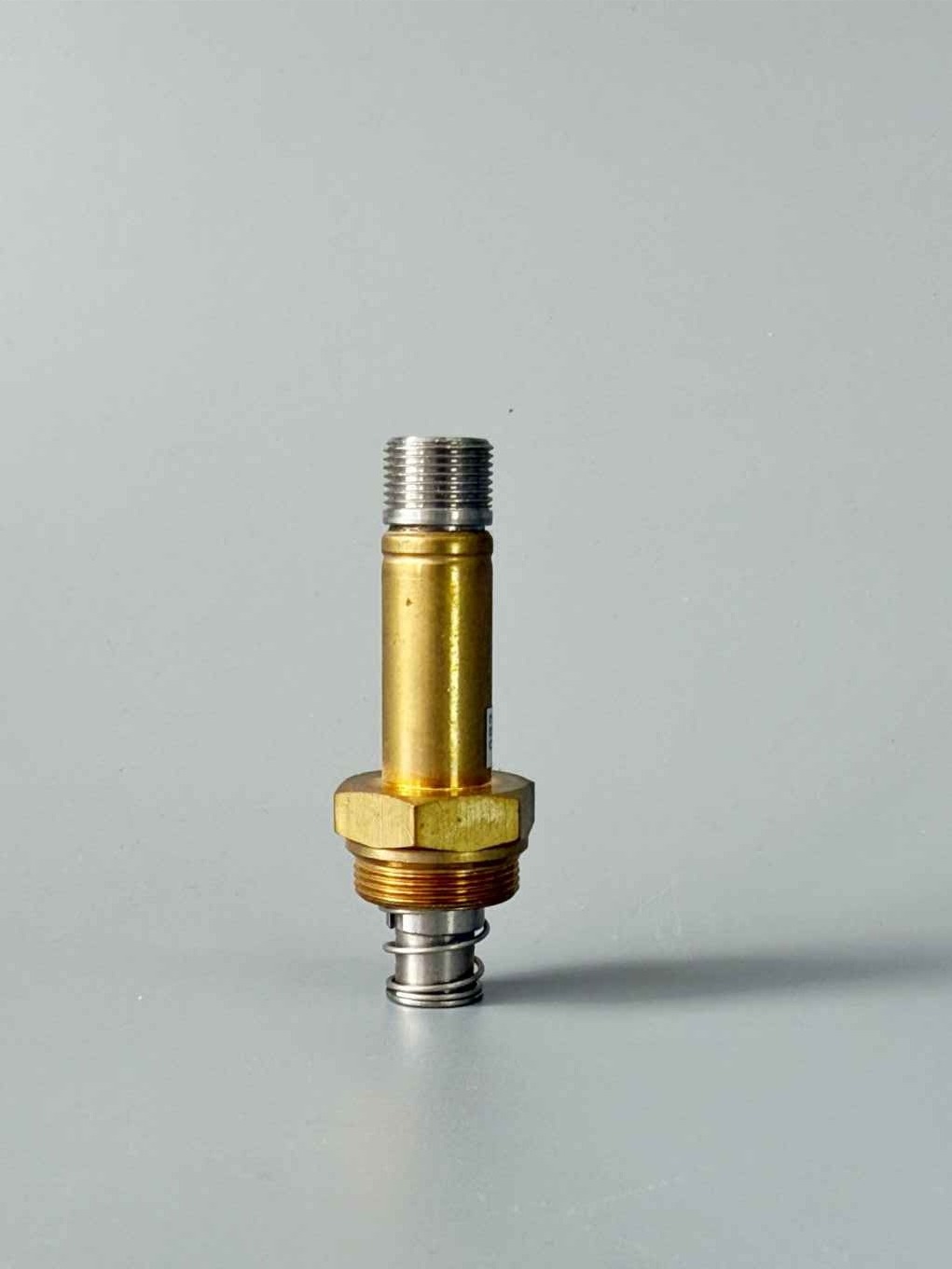

Tube assy ∅13×54, port M20×1, 3-way NC / NO, seal pad ∅6.2, DC coil, brass guide tube. Thread, OD x height, way and voltage can be made to your drawing.
| Item | Specification |
|---|---|
| Tube Assy OD×H | ∅13×54 |
| Connection Size / Thread | M20×1 |
| 2-Way / 3-Way | 3-way |
| NO / NC | NC/NO |
| Seal Pad Size | ∅6.2 |
| Voltage (AC/DC) | DC |
| Tube Assy Material | Brass |
