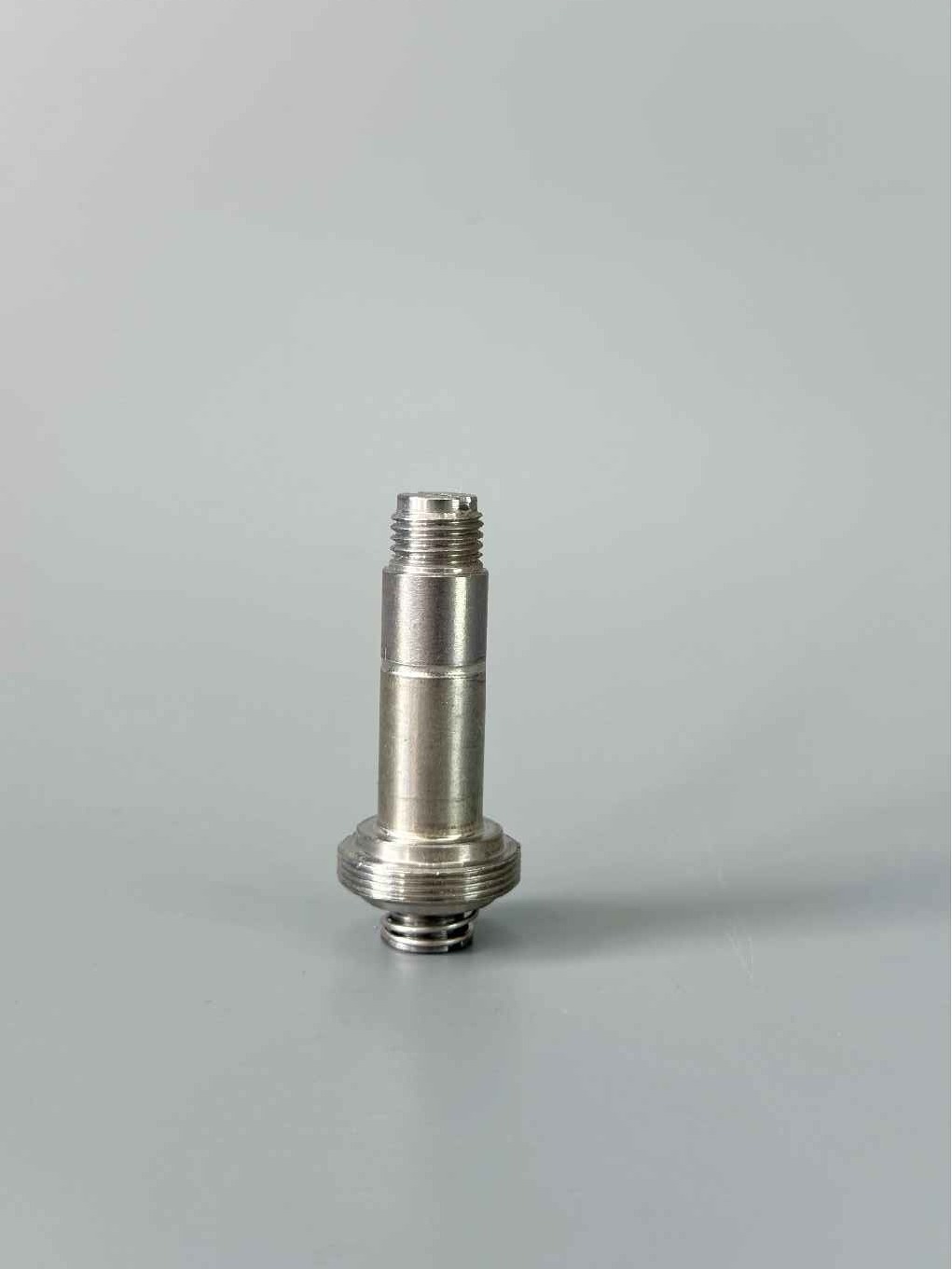

Tube assy ∅10.8×41.2, port 3/4-32, 2-way NC, seal pad ∅5.2, AC coil, stainless steel guide tube. Thread, OD x height, way and voltage can be made to your drawing.
| Item | Specification |
|---|---|
| Tube Assy OD×H | ∅10.8×41.2 |
| Connection Size / Thread | 3/4-32 |
| 2-Way / 3-Way | 2-way |
| NO / NC | NC |
| Seal Pad Size | ∅5.2 |
| Voltage (AC/DC) | AC |
| Tube Assy Material | Stainless Steel |
